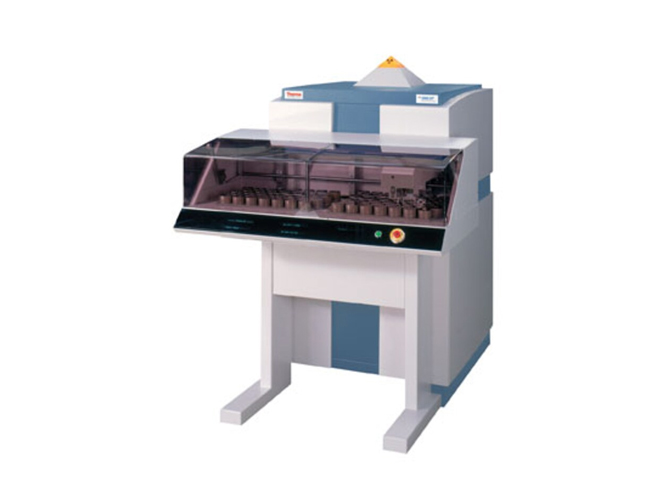

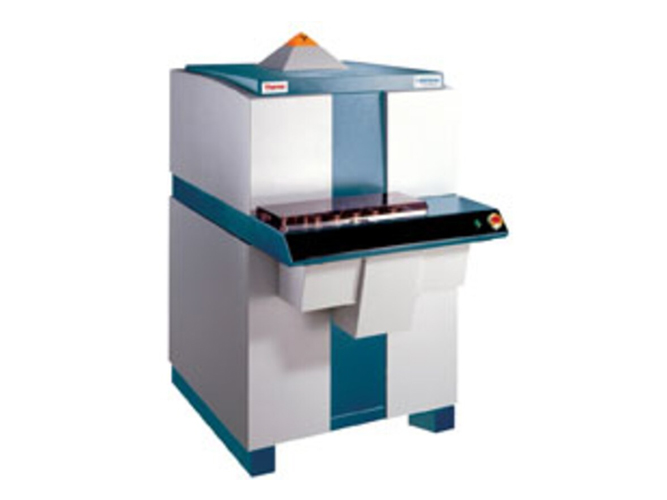

The ARL 9900 cement analyzer can provide rapid process monitoring of key phase cement production processes.
By combining XRF analysis, the composition of material elements can be determined, and XRD analysis provides mineralogical information on how to combine various elements to ensure the integrity of the finished product.
In the past, conducting these two types of analysis required two sets of separate X-ray instruments, which significantly increased the maintenance and operation costs for users.
The integrated and innovative compact X-ray diffraction system supports and introduces both technologies in the ARL 9900 analyzer, providing significant advantages for users:

It only requires one injection, which is reliable, fast, and convenient.

Two technologies share the same user interface.

Merge the results of element and phase analysis into one analysis report.

Minimize the footprint as much as possible.

Can replace two separate instruments.

It can quickly and accurately analyze solid samples.

Using IntelliPower, select the correct power according to the application requirements: 1200W, 2500W, 3600W, or 4200W.

Once the analysis is completed, advanced integrated software can report the results.

Can be easily upgraded to meet constantly changing analytical needs.

X-ray system

The X-ray tube is installed above the sample to prevent damage to the tube due to incomplete samples (such as fragile compression plates).

The temperature controlled spectrometer supports precise measurement, high sensitivity, and stable analysis.

Fixed monochromator

Compact collimator and crystal geometry design can detect extremely low concentrations of elements.

Simultaneously analyzing multiple specific elements to ensure faster response speed.

XRF goniometer

Programmable quantitative analysis of specific elements or qualitative analysis of elements contained in samples.

High quality and fast X-ray spectral sequence determination using Moir é fringe technique.

Can fully analyze unconventional elements.

automation

The injection system is simple, fast, and reliable, achieving varying degrees of automation and reducing labor costs.

Can be connected to fully automated sample preparation equipment for online process control.
