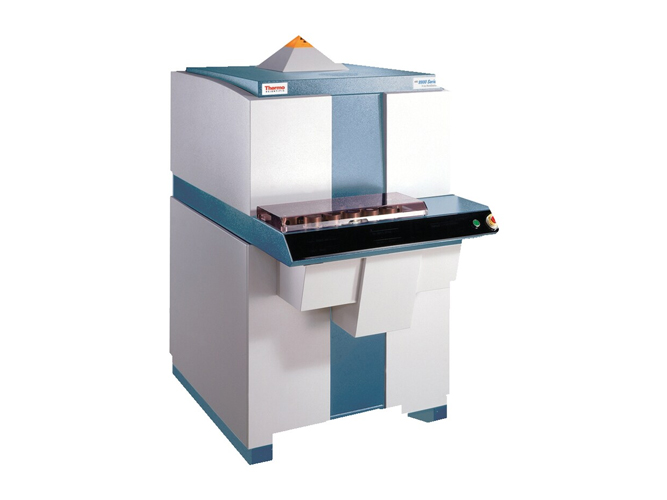

The ARL 9900 series combines a fixed channel and one or two goniometers to ensure rapid simultaneous analysis.
This instrument can provide complete calibration and is therefore delivered as a complete system.
Using Thermo Scientific ™ ARL ™ The SMS-2500 automatic sample preparation and introduction system can further save costs,
Provide fast and reliable automation for ARL 9900 series users.

Product features:

Fully simultaneous and sequential analysis functions integrated into one instrument

Configurable XRF goniometer and up to 24 fixed channels for ultra fast analysis

A fast, convenient, and highly reliable injection system

Can quickly and accurately analyze solid samples

The LoVap technology X-ray tube is equipped with a 50 micron Be window, ensuring excellent long-term stability and excellent analytical performance

The goniometer can detect up to 83 elements (B to Am, 5 to 95 in the periodic table)

The detectable concentration range is from parts per million to 100%

After completing the analysis, advanced integrated software can report the results

Using IntelliPower, select the correct power according to application requirements: 1500W, 2500W, or 4200W

Due to its modular structure, instruments can be specified to meet specific application requirements

Gas consumption of ultra-low temperature detector

An innovative XRD system that can be integrated and configured to allow for phase analysis; Please also refer to the total cement analyzer version

Easy to upgrade to meet constantly changing analytical needs

X-ray system

The X-ray tube is installed above the sample to prevent damage to the tube due to incomplete samples (such as fragile compression plates)

The spectrometer with constant temperature adjustment can provide high stability analysis and precise measurement

Fixed monochromator
Up to 32 fixed channel monochromators can be installed and configured completely simultaneously

Compact collimator and crystal geometry design, capable of detecting extremely low concentrations of elements

Simultaneously analyzing multiple specific elements to ensure faster response times

XRF goniometer
Programmable quantitative analysis of specific elements or qualitative analysis of elements contained in samples

High quality, fast, sequential X-ray spectroscopy using Moir é fringe technique

Can fully analyze unconventional elements

SmartGonio can cover fluorine to americium (up to 3 crystals can be installed)

The universal goniometer can cover boron to americium according to the crystal configuration (up to 9 crystals can be installed)

calibration

The ARL 9900 can be fully calibrated for multiple material types, ensuring fast debugging and quick return on investment

XRF factory calibration is applicable to cast iron, steel, brass, bronze, copper alloys, aluminum alloys, zinc alloys, tin alloys, magnesium alloys, nickel alloys, superalloys, titanium alloys, cobalt alloys, ferroalloys, cement, minerals, slag, limestone and dolomite, ceramic materials, glass, soil, sediments, rocks, and polymers.

The free lime, clinker phase, amorphous phase, and direct reduced iron (DRI) in clinker are calibrated by XRD factory.

automation

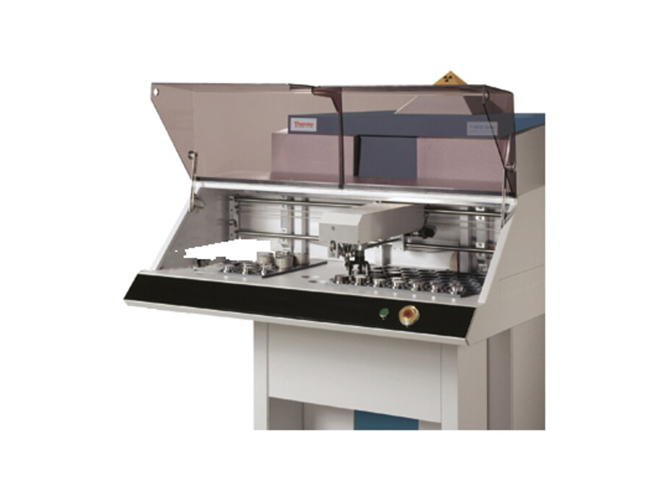

The fast and reliable injection system achieves varying degrees of automation, reducing labor costs and allowing for other tasks.

Can be connected to a fully automated sample preparation machine for fully automated online process control.
